Hunza Eave Light Round Pure LED (Series Circuit) - IP66
£230.00
Tax included.
In stock, ready to be shipped
Quantity
Description
Hunza Eave Light Round Pure LED
The Hunza Eave Light Round (Series / PureLED) is a recessed downlight designed to be installed under eaves, soffits, verandahs, entrance canopies, and other sheltered ceiling applications. Perfect for both residential and commercial settings.
It is designed for a constant current (1050 mA, series wired - driver optionally supplied) operation, giving you excellent lumen output and flexibility in wiring multiple luminaires in series.
Key Features:
-
Constant current operation at 1050mA, enabling series wiring of multiple units.
-
High lumen performance: up to 600lm at 1050mA (6w), with lower current options at 420lm (700mA) or 240lm (350mA).
-
Efficiency of approximately 100 lm/W.
-
Uses a replaceable Cree XHP-50-2 plug-and-play LED board.
-

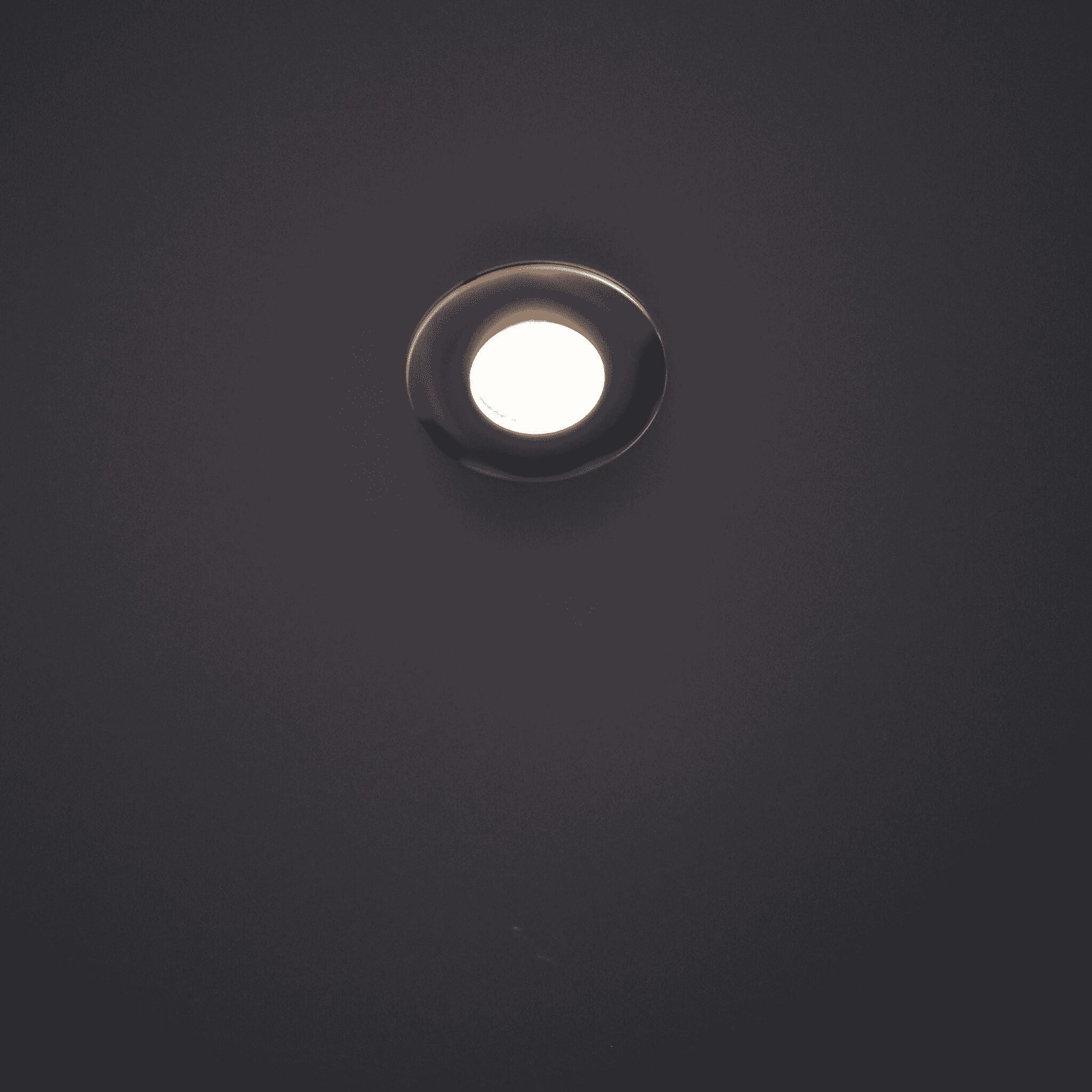

Mounting is recessed in ceilings or eaves, with a compact form (Ø 88mm outer).
-
Lens / beam control options: clear or frosted glass lenses; selectable beam angles (e.g. 15°, 25°, 38°, 60°)
-
Choose from 316 stainless steel, copper, or powder-coated aluminium finishes with great weather sealing (IP66).
-
Long LED life expectancy (50,000 hours, L70).
-
Warranty: 10 years on stainless steel / copper components; 5 years on aluminium / electronics.
Hunza Eave Light Round Pure LED Specifications
| Specification | Value / Options |
|---|---|
| Light Output | 600lm @ 1050mA (6w); 420lm @ 700mA (4w); 240lm @ 350mA (2w) |
| Lumens per Watt (lm/W) | 100 lm/W (unobstructed beam) |
| Input / Driver | Constant current (1050mA) – driver required (optionally supplied) |
| Forward Voltage | 6Vf |
| LED Module | Cree XHP-50-2, plug & play, field replaceable |
| Beam / Lens Options | 15°, 25°, 38°, 60°; clear or frosted glass lenses |
| Material / Finishes | 316 stainless steel, solid copper, powder-coated aluminium |
| Ingress / Environmental Rating | IP66 (suitable for sheltered outdoor use) |
| Outer Diameter / Size | Ø 88 mm (outer face) |
| Warranty | 10 years on stainless / copper; 5 years for aluminium / electronics |

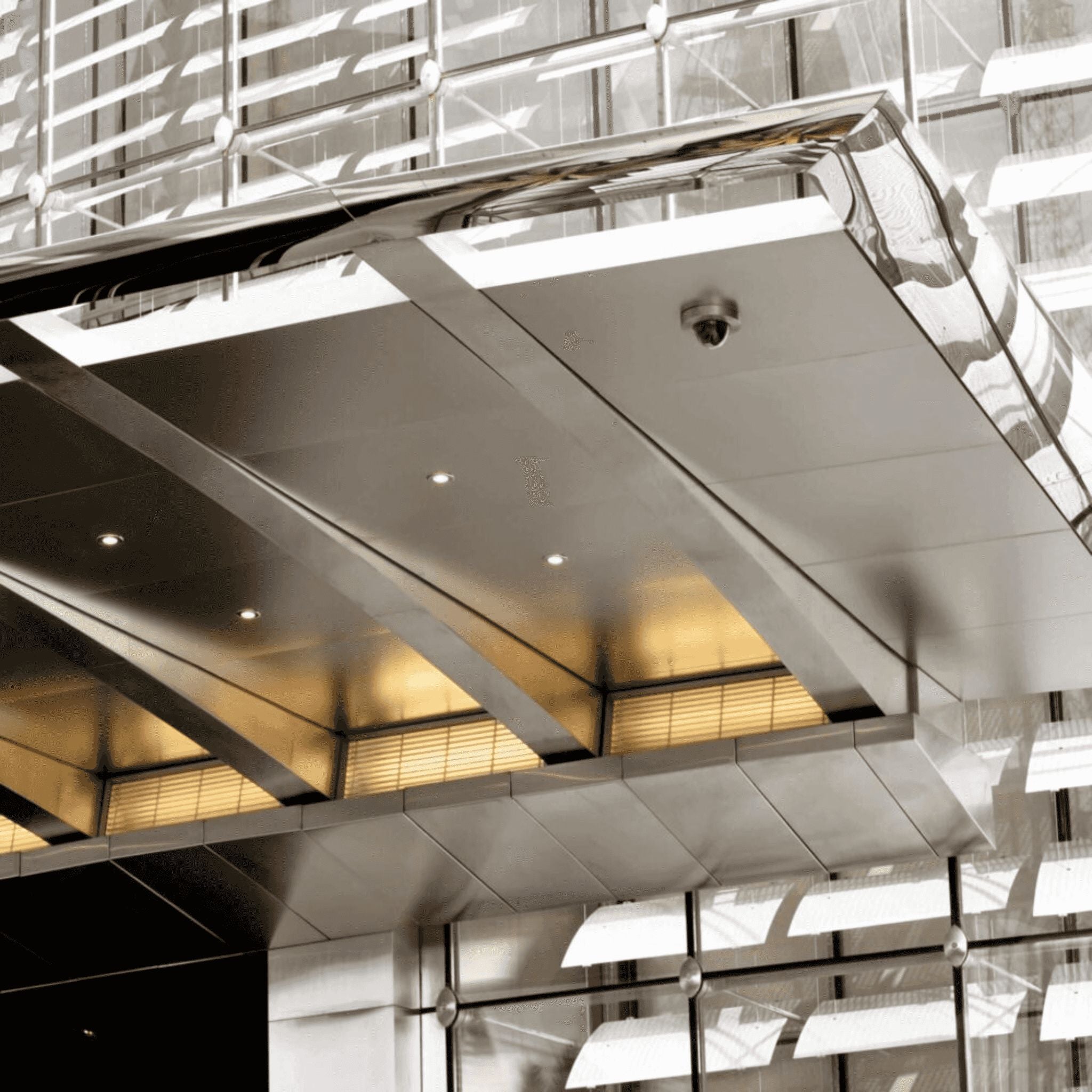

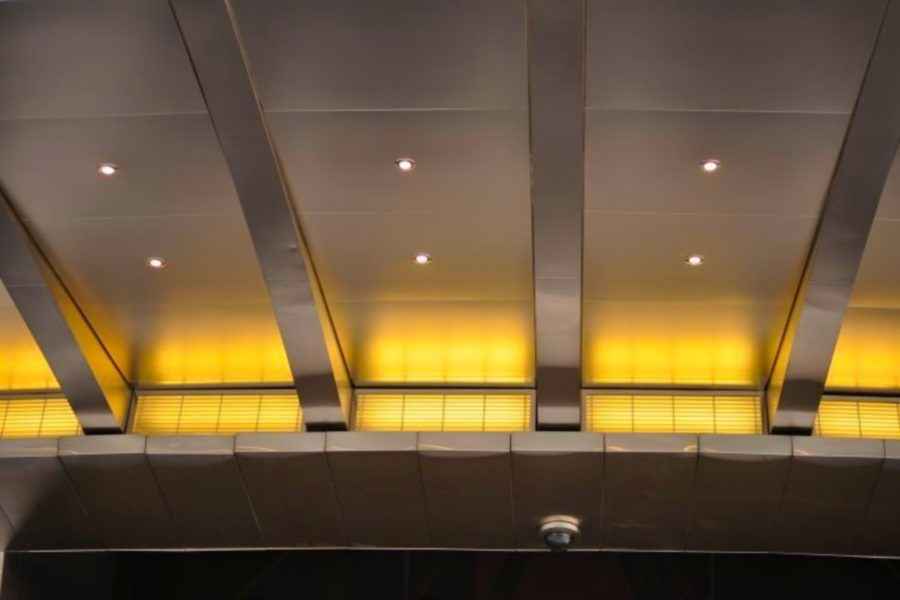

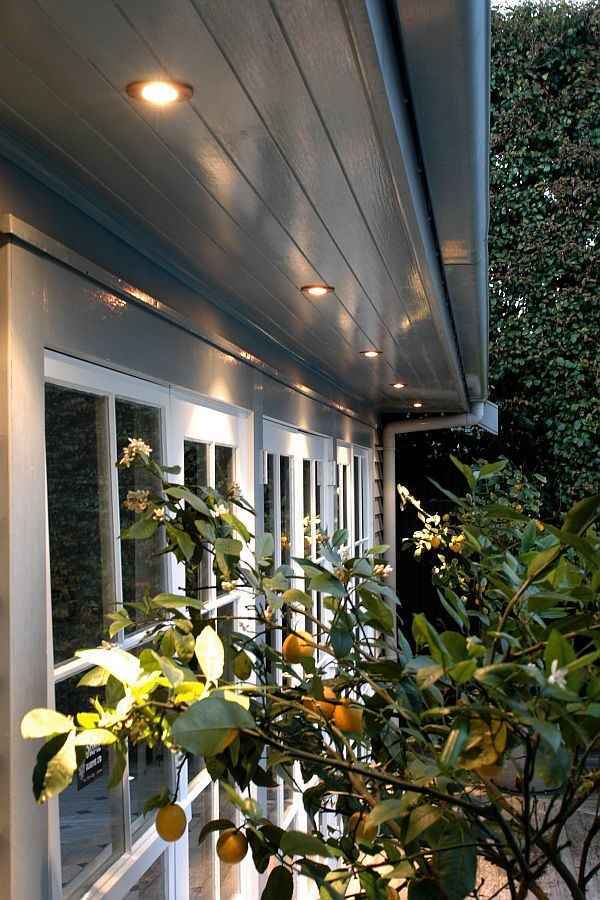

| Application | Recessed under eaves, soffits, verandahs, covered decks, entrance canopies |
