Hunza Eave Light Square Pure LED

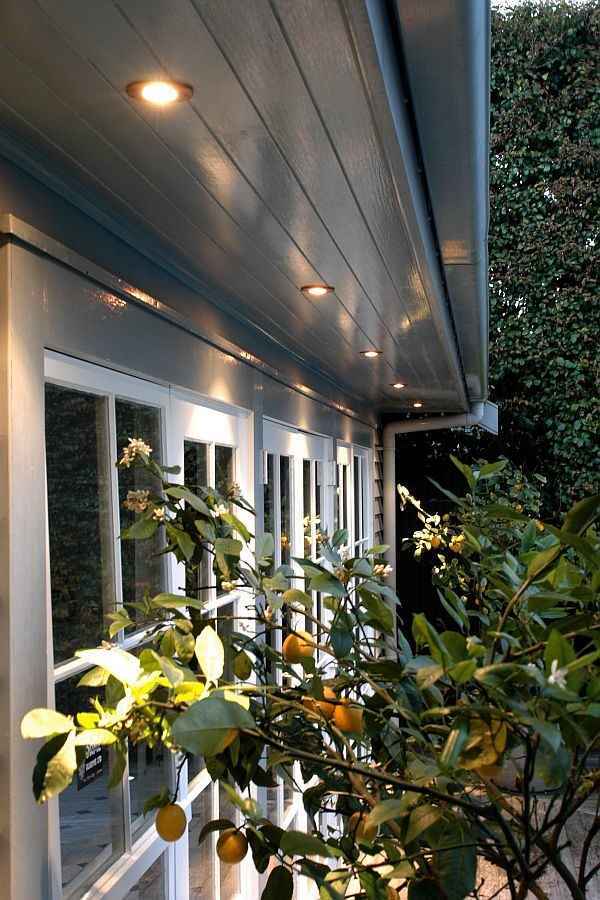

The Hunza Eave Light Square PureLED (also known as E-Lite Square) is a recessed downlight designed for mounting into eaves, soffits, verandahs, or any sheltered ceiling environment.

It operates on a constant-current 1050 mA driver (series configuration - optionally supplied), the luminaire offers multiple lumen levels and beam control options, making it perfect for those who want extra control. The modular PureLED technology allows the LED board to be field-replaceable, so maintenance or upgrades do not require replacing the entire unit.

Key Features:

• Series / constant current operation: 1050 mA (driver supplied as an optional extra)

• Multi-lumen / multi-power capability: 600lm @ 1050mA (6w), 420lm @ 700mA (4w), 240lm @ 350mA (2w)

• High efficacy: 100 lm/W

• Beam / lens options: 15°, 25°, 38°, 60°; Clear or Frosted lens choices

• LED module: Cree XHP-50-2, plug-and-play, field-replaceable

• CRI: 90+ (for 3000 K version)

• Protection: IP66 ingress rating

• Warranty:
   • 10 years on stainless steel or copper flange components
   • 5 years on aluminium components & electronics

• Choose from 316 stainless steel, solid copper, or powder-coated aluminium

• Installation: recessed flush mounted into ceilings or eaves (Ø 65mm cutout typical)

• Forward voltage (fixture input): 6Vf at full drive

• Dimmable with a suitable constant-current driver

Hunza Eave Light Square Pure LED Specifications
