LuxR Modux Four Spike Spot (Series Circuit) - IP68
£231.00
Tax included.
In stock, ready to be shipped
Quantity
Description

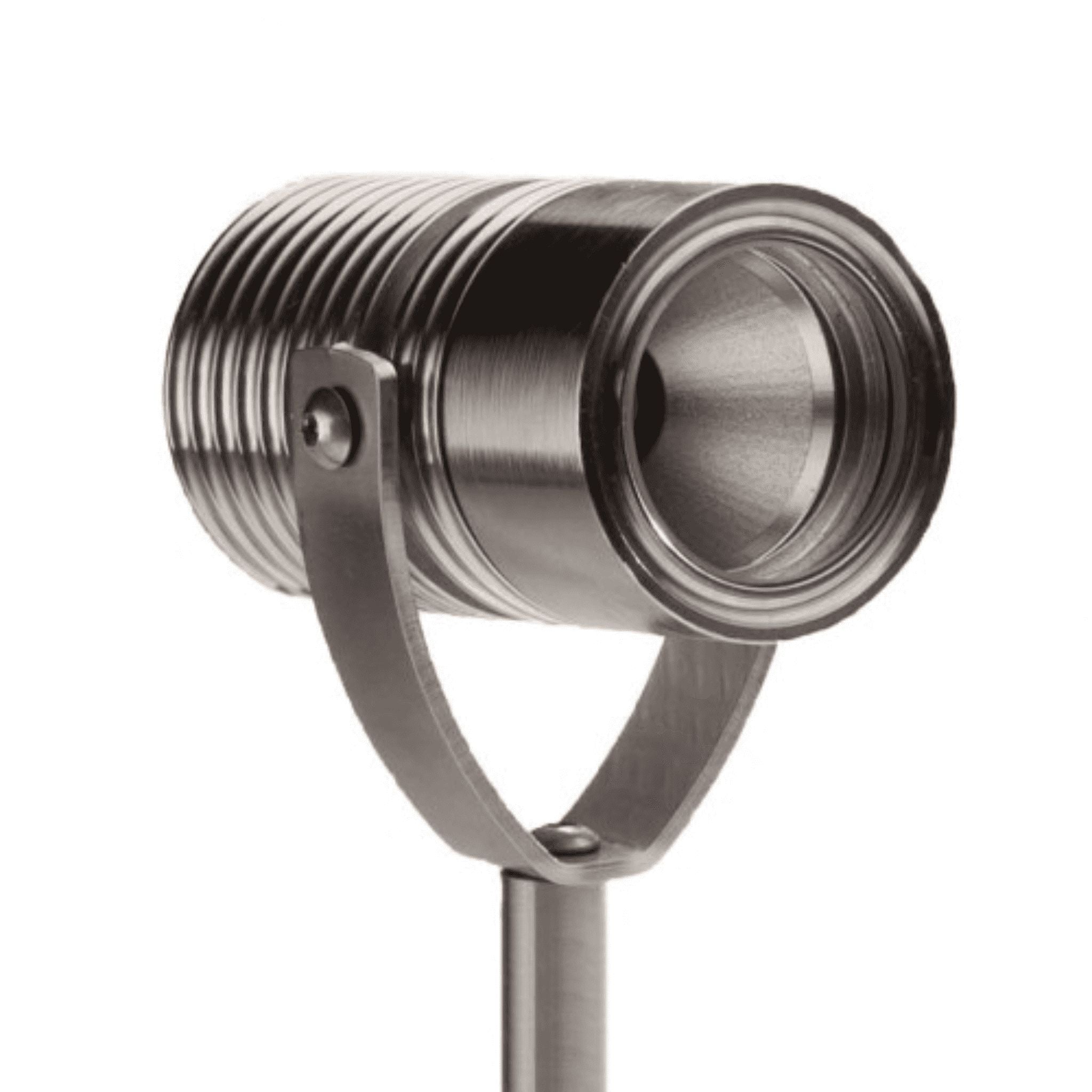

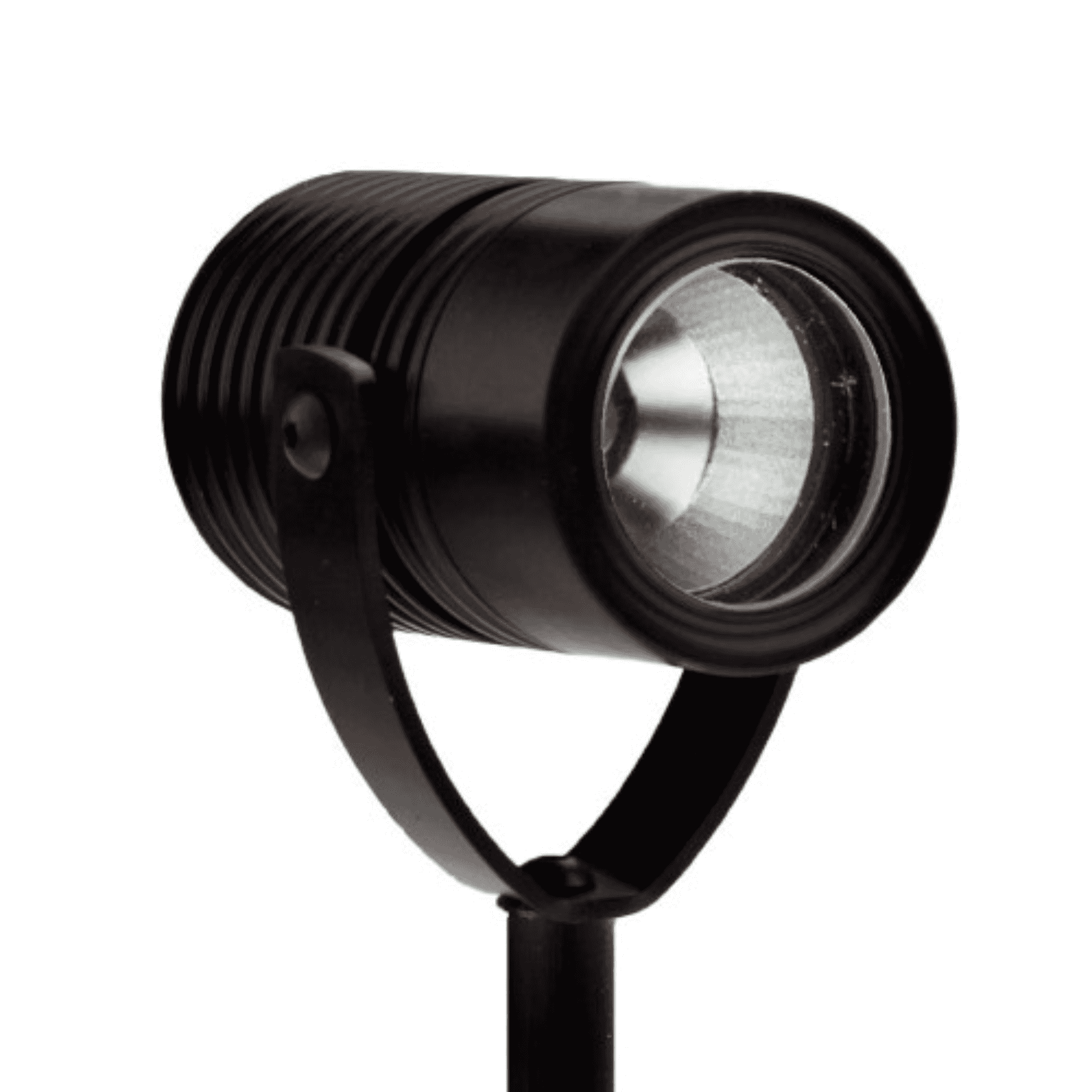

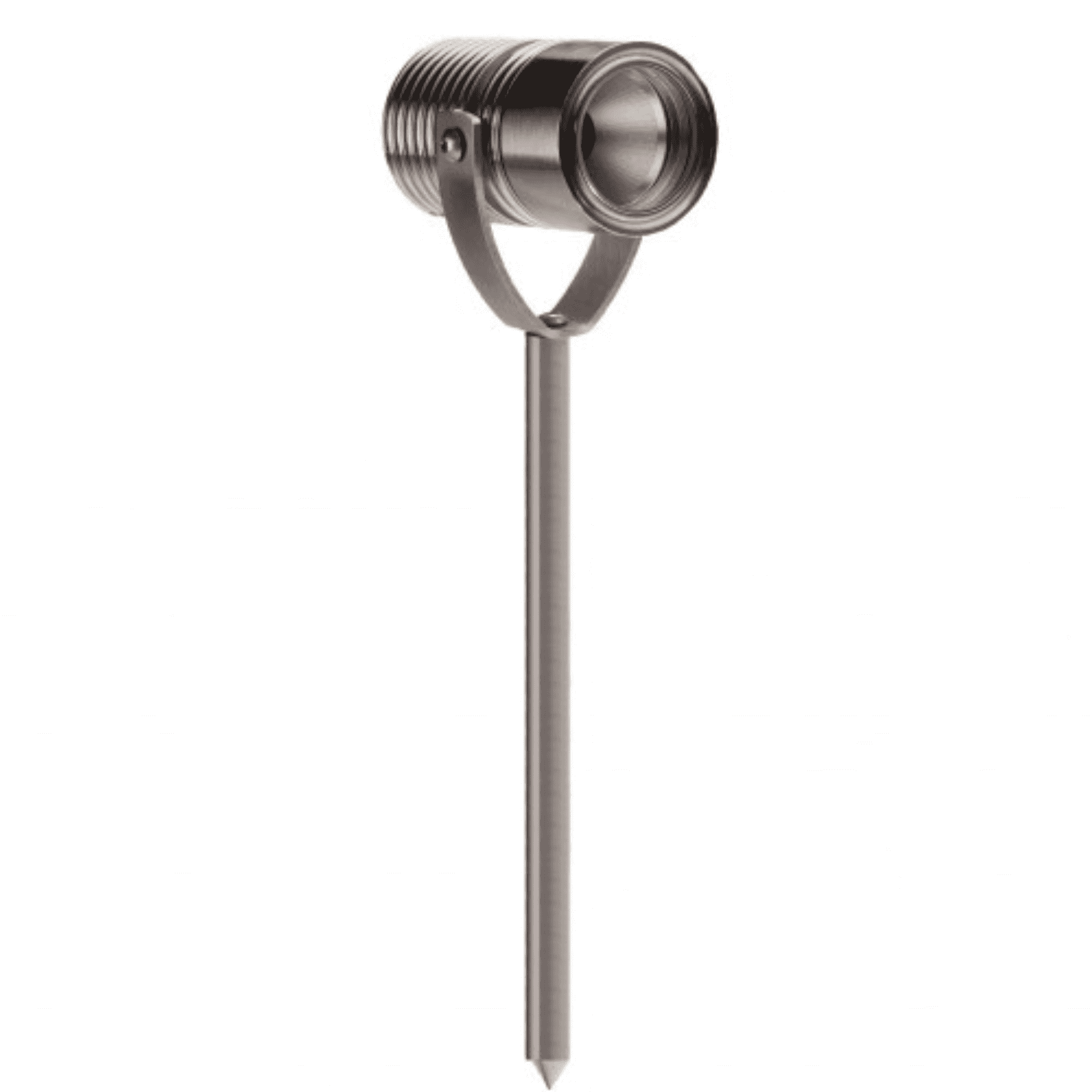

LuxR M4 Spike Spot Light
The LuxR Modux Four Spike Spot is the most powerful fitting in the LuxR range, designed with a minimalistic look, but with high light output. It is ideal for lighting larger features, such as sculptures, large trees, etc.
Installation is simple - wire it up, push the metal spike into the ground and adjust the head for the desired lighting angle.
The fixture operates on low voltage and is fully dimmable, ensuring both safety and energy efficiency.
Like the rest of the LuxR lights, it has a modular design, so you can replace the LED module or optics, extending it's lifetime significantly.
Key Features
-
High output performance: approximately 348 lumens.
-

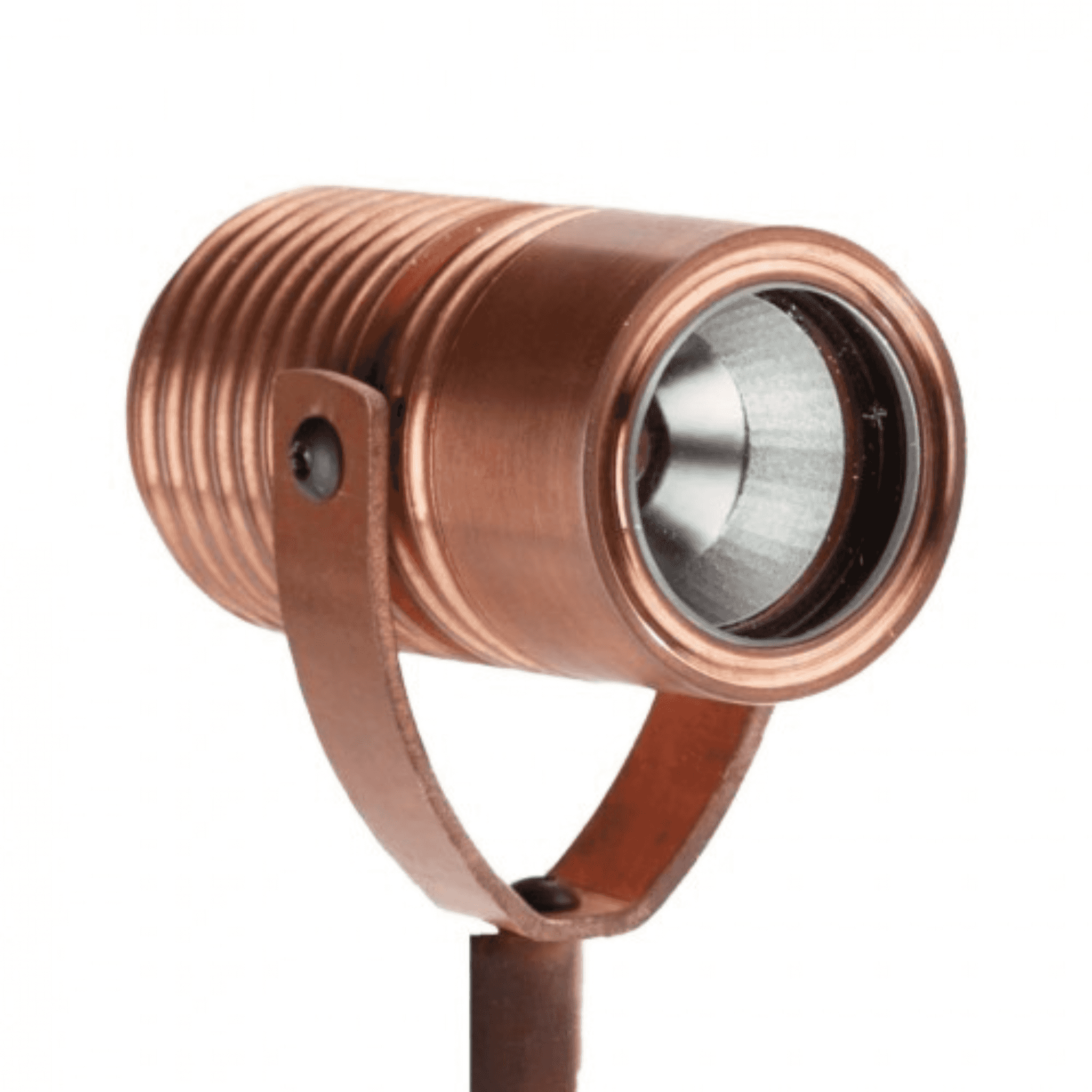

Available in marine-grade 316 stainless steel, natural copper, or powder-coated aluminium finishes.
-
IP68 rated: fully sealed and waterproof, suitable for installation in exposed outdoor areas.
-
Includes a replaceable Cree LED module and interchangeable optics (modular).
-
Beam and lens options: 26°, 36°, or 74° reflectors, with clear or frosted lenses.
-
Warranties: LED life expectancy of approximately 50,000 hours, with up to 10 years warranty on stainless steel and copper bodies, and 5 years on aluminium and electronics.
LuxR M4 Spike Spot Light Specifications
| Specification | Value / Options |
|---|---|
| Input Current | 700 mA constant current |
| Forward Voltage | 6 Vf |
| Power | 4 W (max) |
| Efficacy | 90 lm/W (delivered, unobstructed beam) |
| Colour Temperatures / LED Options | 2700 K, 3000 K, 4000 K; RGBW (DMX option) |
| CRI | Ra 90 (for white LEDs) |
| Beam Angles | 26°, 36°, 74° |
| Lens Options | Clear, Frosted (optional hexcell glare baffle) |
| Light Engine | Cree XHP-50 4 W replaceable LED module |
| Driver Requirement | Remote constant-current driver (700 mA) or integral 12 V AC / 24 V DC variants |
| Light Output | ~348 lumens |
| Standards / Certifications | IP68, CE, UL676, UL1598, UL1838, UL2108, LM79 |
| LED Life Expectancy | ~50,000 hours (L70) |
| Warranty | 10 years (stainless steel/copper body), 5 years (aluminium body & electronics) |
DIY Garden Homes

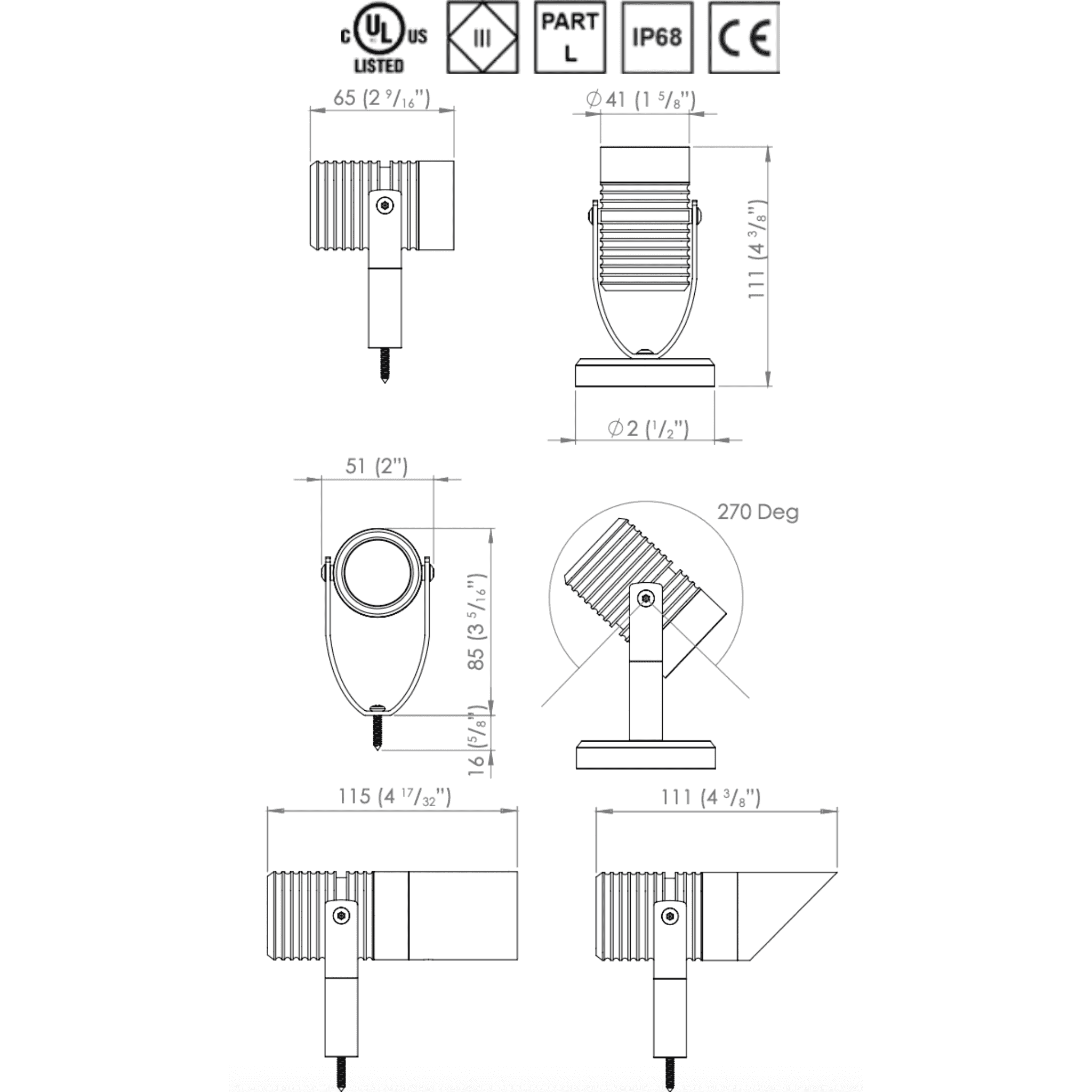

Dimensions
